TunerView RD 2 LED Setup

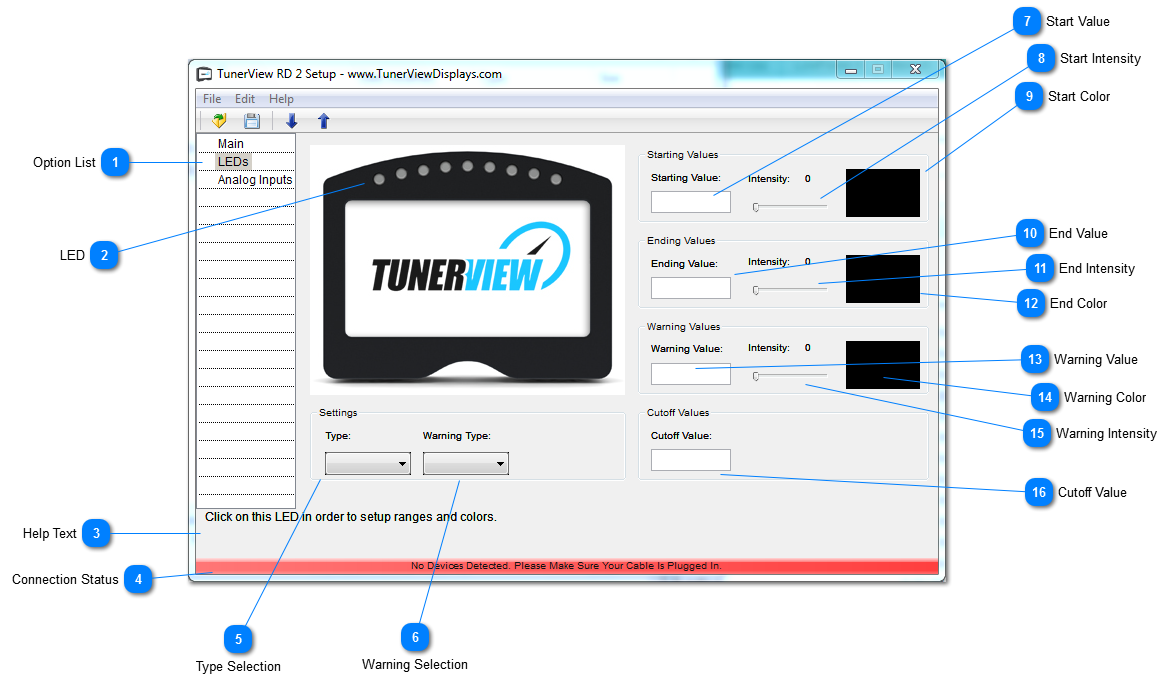

Click on an LED to view and set all of the LED settings.

You'll find useful help text here as you browse through the software.

This will give you information about the device and connection to it.

This allows you to choose the type of value associated with the LED. i.e. RPM

This allows you to choose whether the warning is active above or below the set threshold.

This is the value where the LED will first light up. You can choose the intensity and color for this.

The starting intensity for the LED. This is 0-100 and depicts the brightness of the LED.

This is the starting color for the LED. It's best to use the advanced picker and use colors that are direct. For instance Red being RGB 255, 0, 0. This color will blend into the end color via interpolation.

This is the last value where change is seen. For instance set to RPM starting at 1000 intensity 0 and ending at 2000 intensity 100 will get brighter as the RPM increases between 1000 and 2000. It will stay at intensity 100 after 2000 until the warning or cutoff values take over.

The ending intensity for the LED. This is 0-100 and depicts the brightness of the LED.

This is the color that the LED finishes on based on your value settings. The warning and cutoff can override this setting.

If enabled this is the value that the warning engages. Warning cause the LED to blink in the color and intensity you set.

This is the color the LED will show while warnings are active.

The intensity of the LED during the warning cycle. This is a 0-100 value.

This is the value in which the LED is to be turned off completely. This can be used to have an LED only on for a certain range or only warning at a certain range if you're creating a blended sweep across the LEDs.
