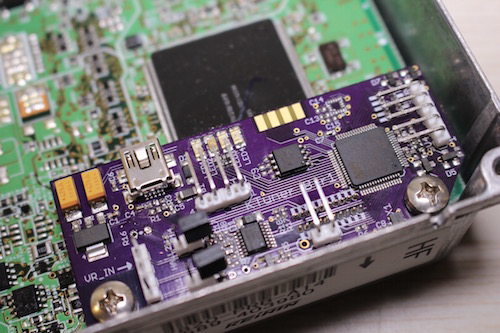

KTunerECU R1
To Setup KTuner you'll need two cables present.
12 Pin USB
:
Power (Switched Ignition)
Ground
4 Pin Molex (Lower)
:
Runs between the KTunerECU R1 Right Angle 4 Pin Header Labeled TV and the TunerView RD 2
Check the
4 Pin Molex (Lower)
section for pinouts
Choose KTunerECU from the TunerView Protocols menu
